Insulated flexible laminated busbar are developed from high conductivity based electrolytic grade copper sheets/foils. It can be customized in different types and sizes. Material is 99.9% T2 copper with excellent conductivity.
Insulated Flexible Laminated Busbar
Laminated and Flexible Copper shunts are developed from high conductivity based electrolytic grade copper sheets/foils. These are made using a press welding procedure where individual copper strips are fused through applying direct current as well as pressure without the need of foreign material.
The process assures minimum resistance and helps in increasing products's service life as well as bringing a reduction in downtime. Further, these also come with superior mechanical & electrical properties at high temperatures.
Photo Show:

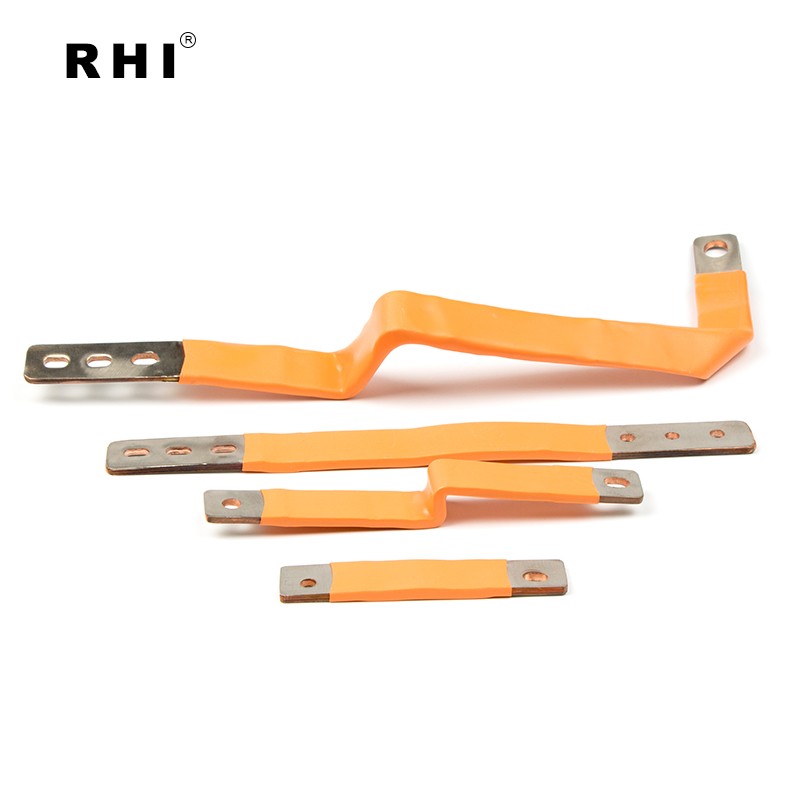

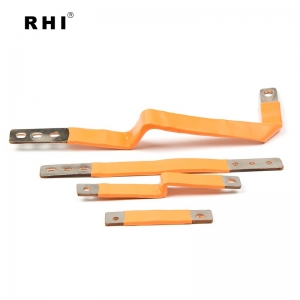

Details of Flexible Laminated Copper Busbars
| Material | T2 99.95% copper foils/sheet |
| Copper Foils Thickness | 0.1mm, 0.2mm, 0.3mm ,0.5mm, 1.0mm |
| Surface Finishes | Black Paint Electro brush Silver Plating Tank Nickel or Tin Plating |
| Production Process | High Ampacity Flexible Connection Molecularly Fused Laminates Ends High DC Current Under Pressure Welding |
| Current | Typical: up to 2000 A Possible: Up to 5,000 A |
| Flex parts of length | Up to 6.6 ft.(2meters long) |
| Width | Up to 6.0 inch (152mm ) |
| Max.Oeveall Thickness | 1.25 inch (32mm) |
| Testing | Resistance, Temperature Rise, Conductivity |
| Sample | Free |
Laminated Flexible Busbar advantages:
1) Welding press many laminations improve electrical conductivity and add the transmission of current.
2) The feature of flexible enable us to be made busbars in various types.
3) Laminated copper shunts are flexible and easy to install.
4) Flexible laminate busbar is not easy to be broken after thousands times of bending.
All sizes can be customized. Just send us your drawings, such as PDF, JPEG, PNG,JPG etc.
We will quote for you in 1-2 working days !
Busbar Types :
| Nickel Plated busbar | Bare Copper Busbar | Tinned Copper Busbar |
| Insulated Busbar with Sleeving | Insulated Busbar with Dipping | Insulated Busbar with Coating |
Technics Supports & Usage:
| Techinics Abilities | Cutting, Punching, Twisting, Bending, Plating, Riveting,Dipping, Coating, Welding, Stamping,Tapping, Brazing, Drilling, Milling, Sawing etc |
| Plating Optional | Nickel Plating |
| Insulation Type | Epoxy Coated PVC Dipping Coated Heat Shrink Sleeves Adsorption |
| Hole Shape | Round Hole, Oval-shaped or Others |
| Edge Shape | Full Round Edge, Semicircle, Square Corner |
| Usage | 1)New Energy Vehicles 2)Battery Packs; 3)Power Supply Room; 4)Power Distribution Equipments; 5)Switchboards; 6)Panel Boards; 7)Low and Medium Voltage Switchgear; 8) Electric Bus, High Speed Train, 9)High Current & Control Equipment; 10)Busway Systems etc. |
