25*3mm fully insulated copper busbar with pvc covers

25*3mm Fully Insulated Copper Busbar with PVC Covers are good quality with reasonable price, they are widely used for vehicles and electrical industry. welcome to inquiry and get free samples !

  • Material:： T2 copper 99.9%, soft pvc
  • Surface Plating:： Nickel, tin or silver plated
  • Edge Type:： Round, square, simicircle etc
  • Hole Type:： Round, oval shaped
  • Insulation Type:： Shrink sleeves, pvc dipping etc

25*3mm Fully Insulated Copper Busbar with PVC Covers

Details of Busbar:

Material: T2 Copper with 99.9% Copper  Content

Electrical Conductivity:  58.0×10  (100% IACS standard)

Size: OEM/ODM Service

Volume Resistivity: ρ20° 0.01724 Ω?mm/m

Test:  Conductivity Testing, Temperature Rise Testing, Bending Testing etc

Surface Plating: 3-12um tin, nickel or silver according to busbar's size

Load Voltage:  220 V to 10 KV according to size

Insulation layer: PE heat shrinkable sleeves


Details of  PVC Busbar Cover:

Material:  Vinyl / Soft PVC

Color: Black, Red customized

Flame Retardancy: UL94v-0

Working Voltage:600V

Break Voltage: 15KV

Photo Show:

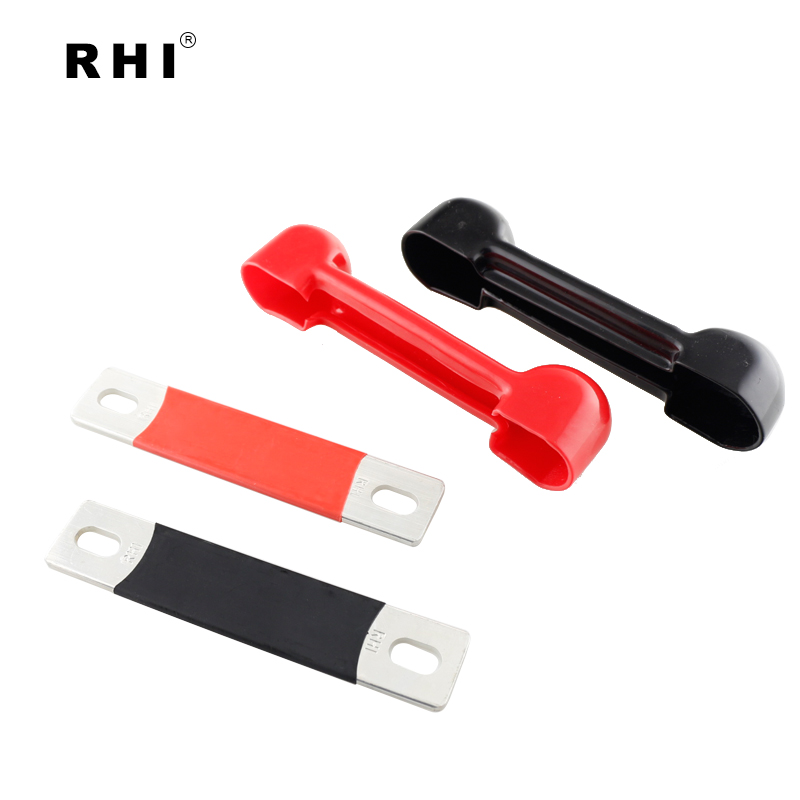

rhi plastic caps and copper busbar

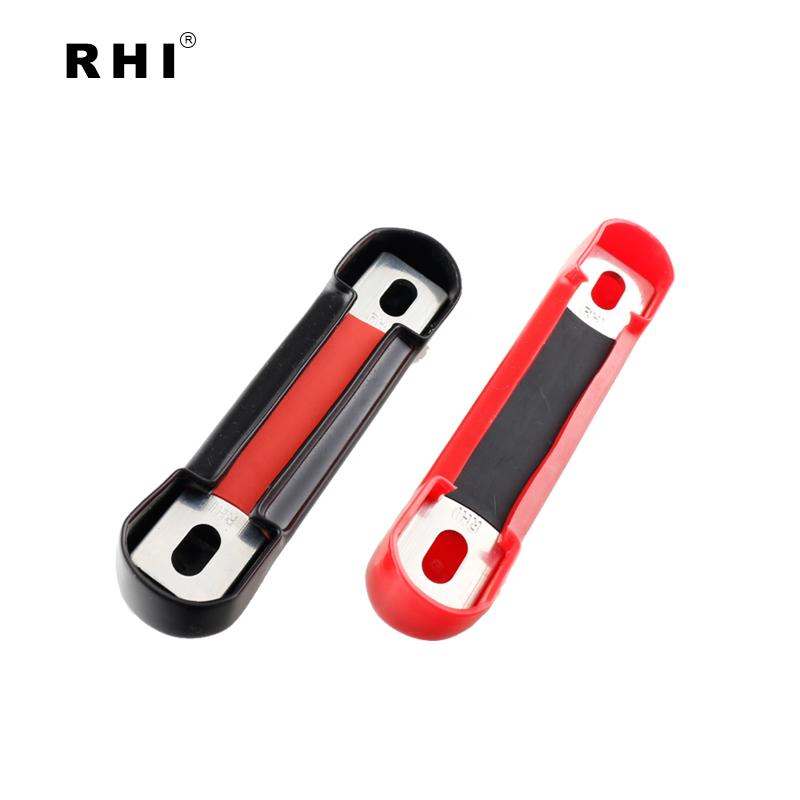

rhi plastic caps and copper busbar

Busbar Types and Covers Kits :

Nickel Plated BusbarBare Copper Busbar Bending Copper Busbar

  • nickel plated battery busbar.jpg

  • non plated busbar.jpg

  • bending busbar.jpg

Insulated Busbar with SleevingInsulated Busbar with DippingInsulated Busbar with Coating

  • Insulated Busbar.jpg

  • Insulated busbar with dipping.jpg

  • busbar with coating.jpg

This series of pvc busbar insulated covers are suitable for busbar with insulation protection and flame retardancy.

Single Type Busbar Cover Buckle  Busbar CoversSilicone Rubber Covers

  • Busbar Covers.jpg

  • busbar cover.jpg

  • silicone rubber covers.jpg

Bus Bar Drawing :

  • Solid tinned copper busbar.jpg


All sizes can be customized. Just send us your drawings, such as PDF, JPEG, PNG,JPG etc.

We will quote for you in 1-2  working days !


Technics Supports & Usage:

Techinics Abilities

Cutting, Punching, Twisting, Bending,

Plating, Riveting,Dipping, Coating,

Welding, Stamping,Tapping, Brazing,

Drilling, Milling, Sawing etc

Plating Optional

Nickel Plating
Silver Plating
Tin Plating

Insulation TypeEpoxy Coated

PVC Dipping Coated

Heat Shrink Sleeves Adsorption

Hole ShapeRound Hole, Oval-shaped or Others
Edge ShapeFull Round Edge, Semicircle, Square Corner
Usage

1)New Energy Vehicles

2)Battery Packs;

3)Power Supply Room;

4)Power Distribution Equipments;

5)Switchboards;

6)Panel Boards;

7)Low and Medium Voltage Switchgear;

8) Electric Bus, High Speed Train,

9)High Current & Control Equipment;

10)Busway Systems etc.

Busbar Technics Shows:


  • Technics Show.jpg


Usage Show:


  • copper busbar application-2.jpg


Our Advantages:


Strong Manufacturer: We have 6000 m2 standard workshop to assure the stability of busbars

Strong After-sale Service: Our after-service team has 30 staffs. With professional busbar knowledge and more than 5 years' exporting experience, our team help to solve any problem during cooperation.

Timely Delivery: As to the standard copper busbar, we promise normal order will be delivered within 7 days. Non-standard copper bus bar delivery time, we can discuss.

Quality Guarantee: Material is tested before production to guarantee it is 100% new raw material. All busbars are inspected before delivery.

Competitive Price: We are professional factory to supply most competitive price with high quality. For long cooperation and large quantity, we can discuss discount price.


Company Show:

  • Busbar Factory.jpg
