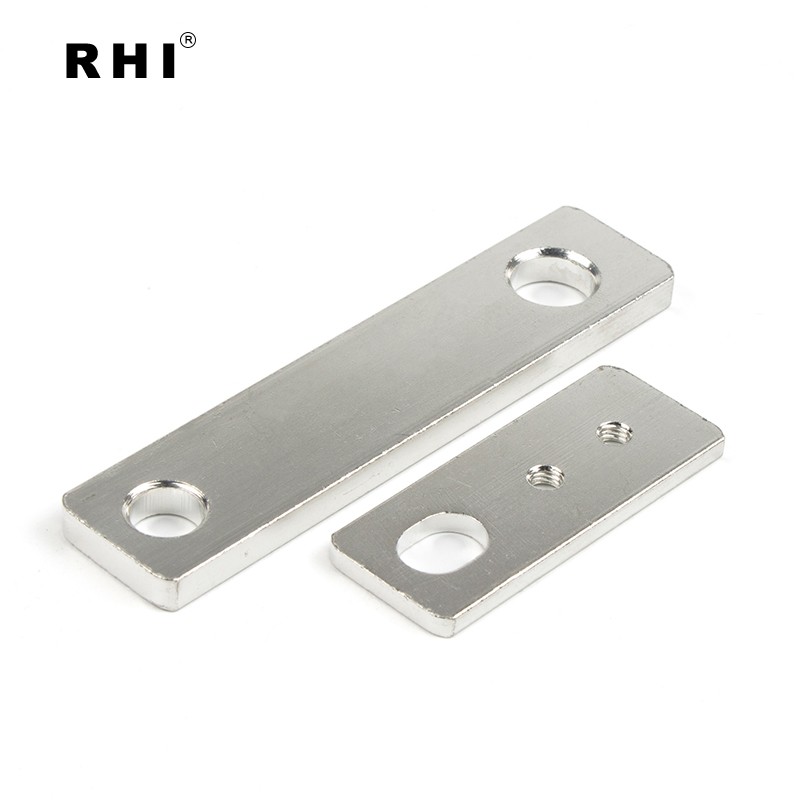

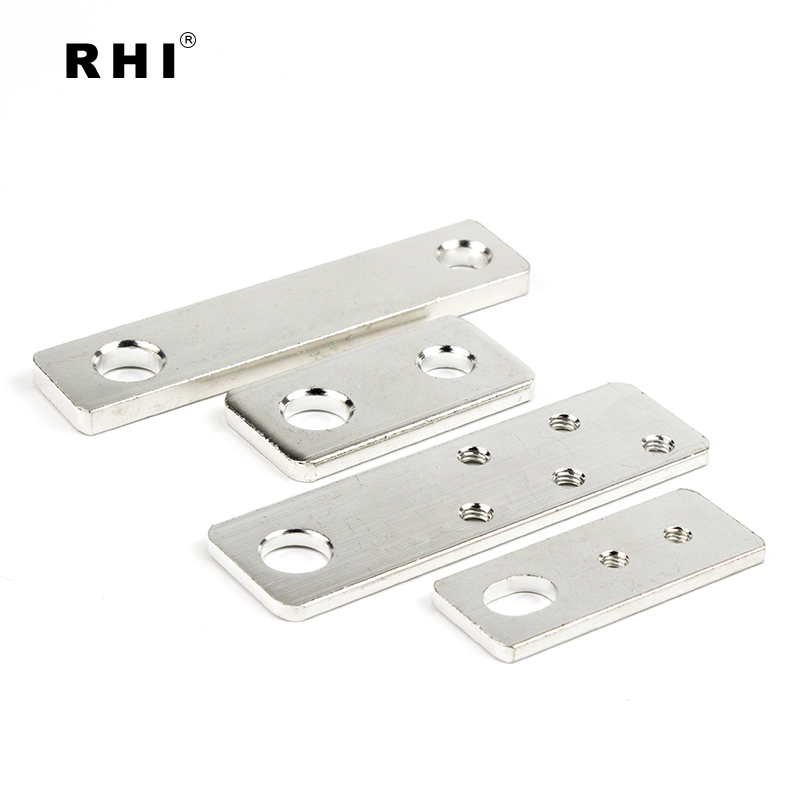

Non-insulated solid tinned copper busbar

Non-insulated solid tinned copper bus bars are made of T2 copper, they can be customized in different shapes and sizes. 99.9% copper content are high conductivity.The copper bus bars are widely used on electrical and new energy vehicles.

  • Material:： 99.9% T2 copper
  • Surface Plating:： Tin plated, nickel plated
  • Edge Type:： Round, square, semicircle etc
  • Hole Type:： Round hole, oval-shaped etc
  • Insulation Type:： Shrink sleeves, pvc dipping, powder coated etc

Square Edge Non-insulated Tinned Copper Busbar


Details:

Material: T2 Copper with 99.9% Copper  Content

Electrical Conductivity:  58.0×10  (100% IACS standard)

Size: OEM/ODM Service

Volume Resistivity: ρ20° 0.01724 Ω?mm/m

Test:  Conductivity Testing, Temperature Rise Testing, Bending Testing etc

Surface Plating: 3-12um tin, nickel or silver according to busbar's size

Load Voltage:  220 V to 10 KV according to size


Photo Show:

solid tinned copper busbar.jpg

Busbar Types and Covers Kits :

Nickel Plated BusbarBare Copper Busbar Bending Copper Busbar
nickel plated battery busbar.jpgnon plated busbar.jpgbending busbar.jpg
Insulated Busbar with SleevingInsulated Busbar with DippingInsulated Busbar with Coating
Insulated Busbar.jpgInsulated busbar with dipping.jpgbusbar with coating.jpg

This series of pvc busbar insulated covers are suitable for busbar with insulation protection and flame retardancy.

Jointed Type Bus Bar CoversSingle Type Busbar Cover Buckle  Busbar Covers
copper busbar with covers.jpgBusbar Covers.jpgbusbar cover.jpg

Bus Bar Drawing :

Solid tinned copper busbar.jpg

All sizes can be customized. Just send us your drawings, such as PDF, JPEG, PNG,JPG etc.

We will quote for you in 1-2  working days !


Technics Supports & Usage:

Techinics Abilities

Cutting, Punching, Twisting, Bending,

Plating, Riveting,Dipping, Coating,

Welding, Stamping,Tapping, Brazing,

Drilling, Milling, Sawing etc

Plating Optional

Nickel Plating
Silver Plating
Tin Plating

Insulation TypeEpoxy Coated

PVC Dipping Coated

Heat Shrink Sleeves Adsorption

Hole ShapeRound Hole, Oval-shaped or Others
Edge ShapeFull Round Edge, Semicircle, Square Corner
Usage

1)New Energy Vehicles

2)Battery Packs;

3)Power Supply Room;

4)Power Distribution Equipments;

5)Switchboards;

6)Panel Boards;

7)Low and Medium Voltage Switchgear;

8) Electric Bus, High Speed Train,

9)High Current & Control Equipment;

10)Busway Systems etc.

Busbar Technics Shows:

Technics Show.jpg

Usage Show:

copper busbar application-2.jpg

Our Advantages:


Strong Manufacturer: We have 6000 m2 standard workshop to assure the stability of busbars

Strong After-sale Service: Our after-service team has 30 staffs. With professional busbar knowledge and more than 5 years' exporting experience, our team help to solve any problem during cooperation.

Timely Delivery: As to the standard copper busbar, we promise normal order will be delivered within 7 days. Non-standard copper bus bar delivery time, we can discuss.

Quality Guarantee: Material is tested before production to guarantee it is 100% new raw material. All busbars are inspected before delivery.

Competitive Price: We are professional factory to supply most competitive price with high quality. For long cooperation and large quantity, we can discuss discount price.


Company Show:

Busbar Factory.jpg
