Insulated flexible copper bus bar connectors are developed from high conductivity based electrolytic grade copper sheets/foils. It can be customized in different types and sizes. They are widely used for battery industry and new energy vehicles
Insulated Flexible Copper Bus Bar Connectors
RHI offer a wide range of copper laminated flexible shunts with fusion process used in various industries without reviting or without any filler material.
Material: Electrolytic Copper / Oxygen Free Copper 99.95%
Stainless steel Finish: Bare Copper / Tin Coated / Silver Plated / Nickel Plated.
These types of copper flexible connectors are used as flexible expansion joints in order to connect busbars in Switchgear industries, Power Plants, New Energy Vehicles, Battery Industry ( such as Chlorine Plant Using Mercury Cell, Modular Battery Cell , Membrane Battery Cell, Diaphragm Battery Cell, Hydrochloride Battery Cell, Manganese Diodide Cell and Cathodic Protection), Bus Ducts, Transformer, V.C.B., Resistance Welding Engineering, Electric Locomotives, Galvano Engineering etc.
It is expansion connectors to prevent damages by other parts of machines or switchgears and to take care of thermal and dynamic stresses caused by short circuit current in the system.

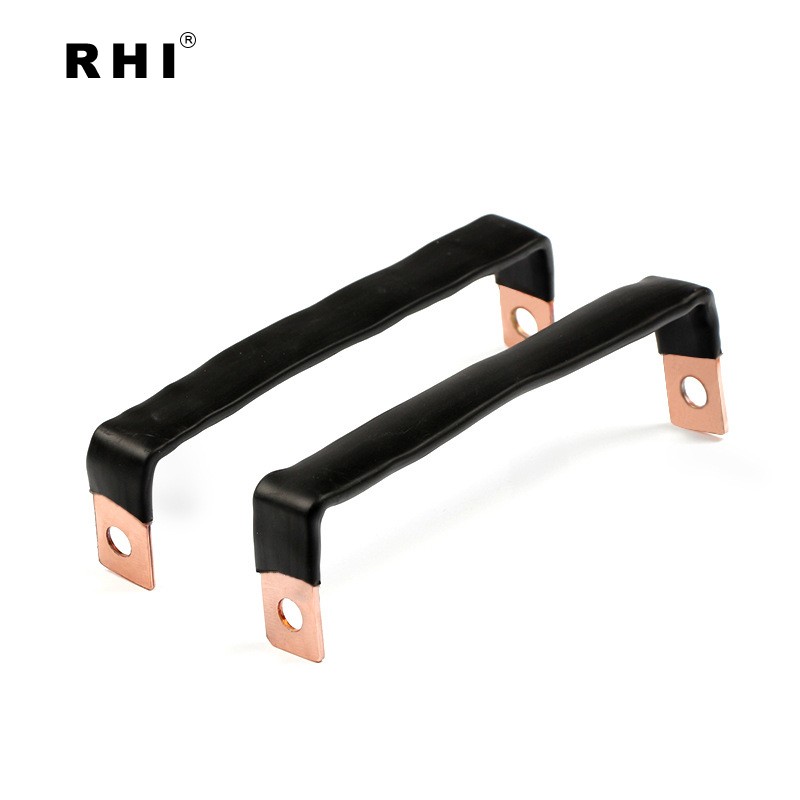

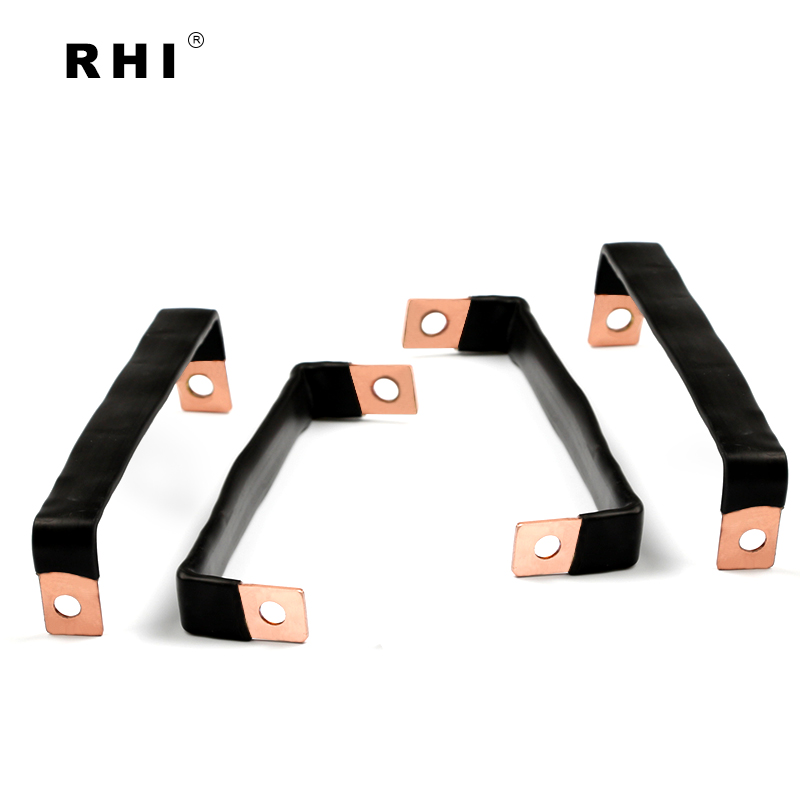

Photo Show:
Details of Flexible Laminated Copper Foil Connectors
| Material | T2 99.95% copper foils/sheet |
| Copper Foils Thickness | 0.1mm, 0.2mm, 0.3mm ,0.5mm, 1.0mm |
| Surface Finishes | Black Paint Electro brush Silver Plating Tank Nickel or Tin Plating |
| Production Process | High Ampacity Flexible Connection Molecularly Fused Laminates Ends High DC Current Under Pressure Welding |
| Current | Typical: up to 2000 A Possible: Up to 5,000 A |
| Flex parts of length | Up to 6.6 ft.(2meters long) |
| Width | Up to 6.0 inch (152mm ) |
| Max.Oeveall Thickness | 1.25 inch (32mm) |
| Testing | Resistance, Temperature Rise, Conductivity |
| Sample | Free |
Laminated Flexible Busbar advantages:
1) Welding press many laminations improve electrical conductivity and add the transmission of current.
2) The feature of flexible enable us to be made busbars in various types.
3) Laminated copper shunts are flexible and easy to install.
4) Flexible laminate busbar is not easy to be broken after thousands times of bending.
All sizes can be customized. Just send us your drawings, such as PDF, JPEG, PNG,JPG etc.
We will quote for you in 1-2 working days !
Busbar Types and Covers Kits :
| Nickel Plated busbar | Bare Copper Busbar | Tinned Copper Busbar |
|
|
|
| Insulated Busbar with Sleeving | Insulated Busbar with Dipping | Insulated Busbar with Coating |
|
|
|
Technics Supports & Usage:
| Techinics Abilities | Cutting, Punching, Twisting, Bending, Plating, Riveting,Dipping, Coating, Welding, Stamping,Tapping, Brazing, Drilling, Milling, Sawing etc |
| Plating Optional | Nickel Plating |
| Insulation Type | Epoxy Coated PVC Dipping Coated Heat Shrink Sleeves Adsorption |
| Hole Shape | Round Hole, Oval-shaped or Others |
| Edge Shape | Full Round Edge, Semicircle, Square Corner |
| Usage | 1)New Energy Vehicles 2)Battery Packs; 3)Power Supply Room; 4)Power Distribution Equipments; 5)Switchboards; 6)Panel Boards; 7)Low and Medium Voltage Switchgear; 8) Electric Bus, High Speed Train, 9)High Current & Control Equipment; 10)Busway Systems etc. |
Busbar Technics Shows:
Usage Show:
Our Advantages:
Strong Manufacturer: We have 6000 m2 standard workshop to assure the stability of busbars
