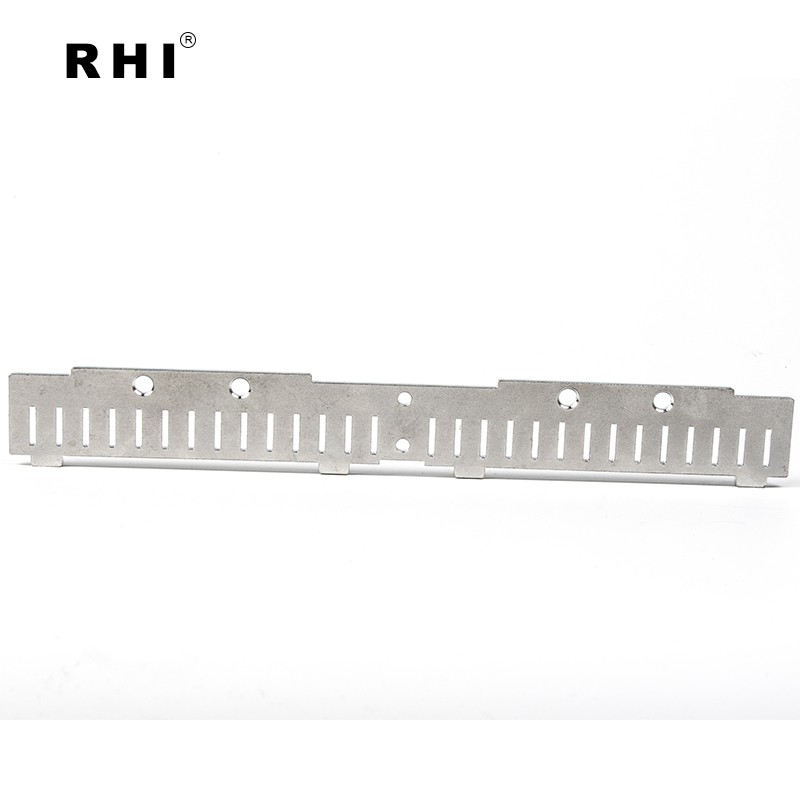

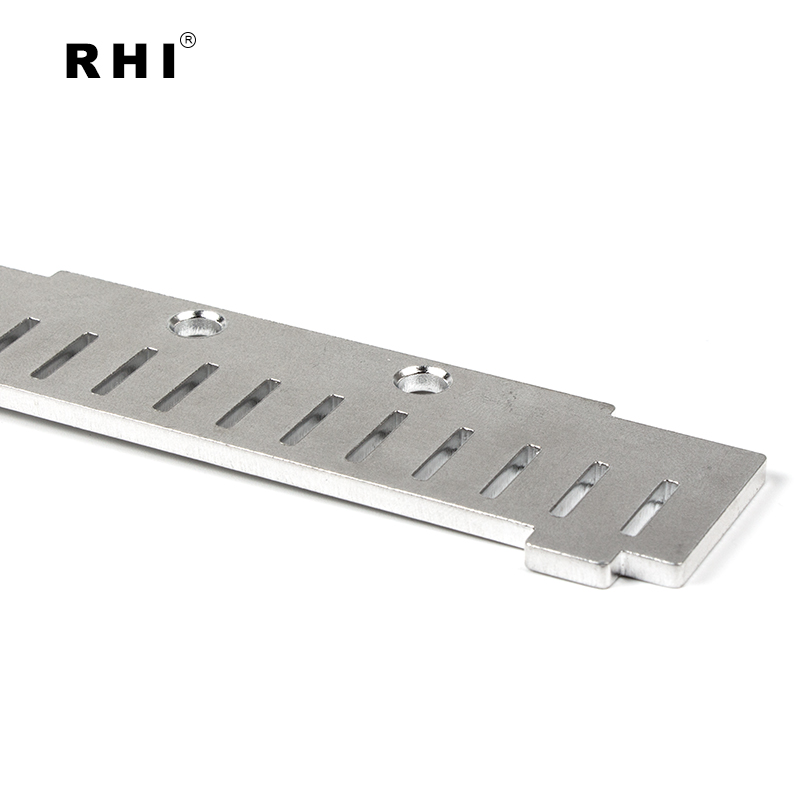

Flat Aluminium busbar

Custom Aluminium Busbar are widely used for new energy vehicles, different shapes and sizes are welcome.

  • Material:： Aluminium 6061, 6063 etc
  • Surface Plating:： Tin, Nickel
  • Hole Type:： Round, oval-shaped etc
  • Edge Type:： Round, square, semicircle etc
  • Working Voltage:： 1.5V to 15KV

Flat Custom Aluminum Bus Bar

Solid Custom Aluminium Busbar  widely used for automotive, new energy industry,power equipments, welcome to send us your drawing or requirements, any shape and sizes can be customized by us


Details:

Material:   Aluminium 6061, 6063

Tensile strength: ≥ 180 MPa

Surface Finish: Nickel or tin plated

Size: OEM/ODM Service

Test:  Conductivity Testing, Temperature Rise Testing, Bending Testing etc

Surface Plating: 3-12um tin, nickel or silver according to busbar's size

Load Voltage:  220 V to 15 KV according to size


Photo Show:

custom aluminium busbar.jpg

Copper Busbar Types and Covers Kits :

Tinned Copper BusbarBare Copper Busbar Flexible Laminated Busbar

custom tinned busbar.jpg




non plated busbar.jpg




laminated copper busbar.jpg




Insulated Busbar with SleevingInsulated Busbar with DippingInsulated Busbar with Coating

Insulated Busbar.jpg




Insulated busbar with dipping.jpg




busbar with coating.jpg




This series of pvc busbar insulated covers are suitable for busbar with insulation protection and flame retardancy.

Jointed Type Bus Bar CoversSingle Type Busbar Cover Buckle  Busbar Covers


  • copper busbar with covers.jpg







  • Busbar Covers.jpg







  • busbar cover.jpg




All sizes can be customized. Just send us your drawings, such as PDF, JPEG, PNG,JPG etc.

We will quote for you in 1-2  working days !


Technics Supports & Usage:

Techinics Abilities

Cutting, Punching, Twisting, Bending,

Plating, Riveting,Dipping, Coating,

Welding, Stamping,Tapping, Brazing,

Drilling, Milling, Sawing etc

Plating Optional

Nickel Plating
Silver Plating
Tin Plating

Insulation TypeEpoxy Coated

PVC Dipping Coated

Heat Shrink Sleeves Adsorption

Hole ShapeRound Hole, Oval-shaped or Others
Edge ShapeFull Round Edge, Semicircle, Square Corner
Usage

1)New Energy Vehicles

2)Battery Packs;

3)Power Supply Room;

4)Power Distribution Equipments;

5)Switchboards;

6)Panel Boards;

7)Low and Medium Voltage Switchgear;

8) Electric Bus, High Speed Train,

9)High Current & Control Equipment;

10)Busway Systems etc.

Busbar Technics Shows:

Technics Show.jpg


Usage Show:

copper busbar application-2.jpg





Our Advantages:


Strong Manufacturer: We have 6000 m2 standard workshop to assure the stability of busbars

Strong After-sale Service: Our after-service team has 30 staffs. With professional busbar knowledge and more than 5 years' exporting experience, our team help to solve any problem during cooperation.

Timely Delivery: As to the standard copper busbar, we promise normal order will be delivered within 7 days. Non-standard copper bus bar delivery time, we can discuss.

Quality Guarantee: Material is tested before production to guarantee it is 100% new raw material. All busbars are inspected before delivery.

Competitive Price: We are professional factory to supply most competitive price with high quality. For long cooperation and large quantity, we can discuss discount price.


Company Show:


Busbar Factory.jpg
